asyncmachine.dev

/pkg/history provides mutation history tracking and traversal, which plays an essential role in making informed decision about state flow. It contains rich machine time information including subsets for tracked states, various diffs, sums, and also binds mutations to human time. Because of storage constraints, additional info about transitions is optional. Each history backend has it’s own query mechanism, but all implement the common Query interface.

Another use case for pkg/history is resurrecting state machines after a restart, based on ticks and (optionally) a journal - it happens manually inside the MachineRestored state, which is added by the Machine.Import() method. During the import, MachineTick increments by +1. MachineRecord can optionally store also the full schema and ordered list of state names, to restore dynamic state-machines.

This layer works with both local and network machines via the Tracer API. All times are in UTC, methods thread-safe, and IDs deterministic.

TODO

conditions for extra transition info
proper time and space benchmarks
more backends (sqlc)
store time distances

Below are the key APIs, the rest can be found in the godoc.

type TimeRecord struct {
    // TransitionId is an optional ID of the related [TransitionRecord].
    TransitionId string
    // MutType is a mutation type.
    MutType am.MutationType
    // MTimeSum is a machine time sum after this transition.
    MTimeSum uint64
    // MTimeSum is a machine time sum after this transition for tracked states
    // only.
    MTimeTrackedSum uint64
    // MTimeDiff is a machine time difference for this transition.
    MTimeDiff uint64
    // MTimeDiff is a machine time difference for this transition for tracked
    // states only.
    MTimeTrackedDiff uint64
    // MTimeRecordDiff is a machine time difference since the previous
    // [TimeRecord].
    MTimeRecordDiff uint64
    // HTime is a human time in UTC.
    HTime time.Time
    // MTime is a machine time after this mutation.
    MTimeTracked am.Time
    // MachTick is the machine tick at the time of this transition.
    MachTick uint32
}


type MemoryApi interface {
    // predefined queries

    ActivatedBetween(ctx context.Context, state string, start, end time.Time) bool
    ActiveBetween(ctx context.Context, state string, start, end time.Time) bool
    DeactivatedBetween(ctx context.Context, state string, start, end time.Time) bool
    InactiveBetween(ctx context.Context, state string, start, end time.Time) bool

    // DB queries

    Find(ctx context.Context, inclTx bool, cond Query) (*MemoryRecord, error)

    // converters

    ToTimeRecord(format any) (*TimeRecord, error)
    ToMachineRecord(format any) (*MachineRecord, error)
    ToTransitionRecord(format any) (*TransitionRecord, error)

    // misc

    Machine() am.Api
    Config() Config
    Context() context.Context
    MachineRecord() *MachineRecord
    Dispose() error
}

In-Process History

This is the default backend and uses a simple Go slice.

Pros:

lightweight
concurrent reads
no encode/decode overhead

Cons:

no persistence
manual pattern queries via slice indexes
eats memory

Example:

import amhist "github.com/pancsta/asyncmachine-go/pkg/states/history"

// ...

// var mach *am.Machine
// var ctx context.Context

// start tracking mutations of states A and C, with a 1k limit
cfg := Config{
    TrackedStates: am.S{"A", "C"},
    MaxRecords: 1_000,
}
mem, err := NewMemory(ctx, nil, mach, cfg, onErr)

// mutate A
mach.Add1("A", nil)

// run a query
now := time.Now()
mem.ActivatedBetween(ctx, "A", now.Add(-time.Second), now) // true

Benchmark:

=== RUN   TestTrackMany
    test_hist.go:27: rounds: 50000
    test_hist.go:34: mach: 218.917261ms
    test_hist.go:38: db: 218.971242ms
    test_hist.go:63: query: 219.027448ms
--- PASS: TestTrackMany (0.22s)
PASS

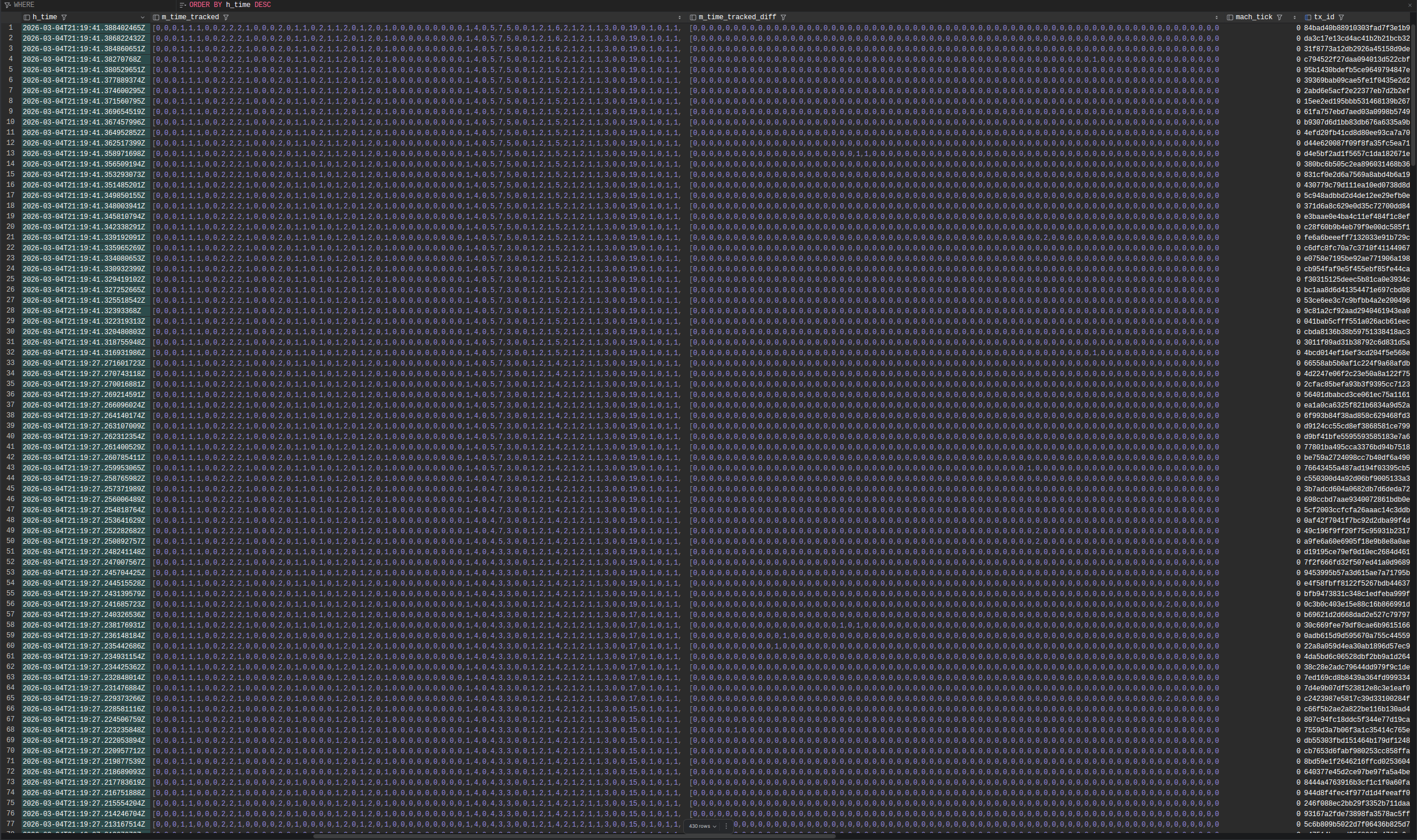

SQL History

The SQL backend uses GORM, and ships with a WASM-based SQLite (WAL enabled), although it can be used with any SQL database.

Pros:

StarTrek-ready, great tooling
easy pattern queries via WHERE and JOIN
can offload data over the network
concurrent reads
multiple DB connections

Cons:

slow startup or provisioning required
SQLite adds 1-3MBs to the binary size
slow writes

Example:

import (
    amhist "github.com/pancsta/asyncmachine-go/pkg/states/history"
    amhistg "github.com/pancsta/asyncmachine-go/pkg/states/history/gorm"
)

// ...

// var mach *am.Machine
// var ctx context.Context

// injected err handler
onErr := func(err error) {
    log.Print(err.Error())
}

// backend and base configs
cfg := Config{
    Config: amhist.Config{
        MaxRecords: 10 ^ 6,
        TrackedStates: am.S{"A", "C"},
    },
    EncJson: true,
}

// create amhist.sqlite
db, err := amhistg.NewSqlite("")
defer db.Close()

mem, err := amhistg.NewMemory(ctx, db, mach, cfg, onErr)

// mutate and query
mach.Add1("A", nil)
now := time.Now()
mem.ActivatedBetween(ctx, "A", now.Add(-time.Second), now) // true

Benchmark:

=== RUN   TestGormTrackMany
    test_hist.go:27: rounds: 50000
    test_hist.go:34: mach: 230.361104ms
    test_hist.go:38: db: 801.976497ms
    test_hist.go:63: query: 802.315625ms
--- PASS: TestGormTrackMany (1.28s)
PASS

Key-Value History

The Key-Value store backend uses etcd-io/bbolt with vmihailenco/msgpack and writes to a single file. For debugging there’s also JSON encoding, with 2x the size.

Pros:

instant startup
small binary size
concurrent reads

Cons:

abysmal tooling [0][1]
manual pattern queries via cursor scanning
single DB connection only

Schema:

_machines
MyMachId1
- Times
- Transitions

Example:

import (
    amhist "github.com/pancsta/asyncmachine-go/pkg/states/history"
    amhistb "github.com/pancsta/asyncmachine-go/pkg/states/history/bbolt"
)

// ...

// var mach *am.Machine
// var ctx context.Context

// injected err handler
onErr := func(err error) {
    log.Print(err.Error())
}

// backend and base configs
cfg := Config{
    Config: amhist.Config{
        MaxRecords: 10 ^ 6,
        TrackedStates: am.S{"A", "C"},
    },
    EncJson: true,
}

// create amhist.db
db, err := amhistb.NewDb("")
defer db.Close()

mem, err := amhistb.NewMemory(ctx, db, mach, cfg, onErr)

// mutate and query
mach.Add1("A", nil)
now := time.Now()
mem.ActivatedBetween(ctx, "A", now.Add(-time.Second), now) // true

Benchmark:

=== RUN   TestBboltTrackMany
    test_hist.go:27: rounds: 50000
    test_hist.go:34: mach: 227.534418ms
    test_hist.go:42: db: 249.641323ms
    test_hist.go:66: query: 249.81ms
    bbolt_test.go:116: write time: 156.384972ms
--- PASS: TestBboltTrackMany (0.26s)
PASS

Columnar History

There’s an experimental Columnar backend based on FrostDB and Parquet in /pkg/x/history/frostdb.

Documentation

Status

Alpha, not semantically versioned.
