/pkg/pubsub/README.md

/pkg/pubsub is a trustful and decentralized synchronization network for asyncmachine-go. Each peer exposes several state machines, then starts gossiping about them and other ones known to him. Remote state machines are then visible to other peers as /pkg/rpc.Worker. PubSub can be used to match Clients with Supervisors from /pkg/node.

Under the hood it’s based on libp2p gossipsub, which is a mesh-based PubSub, also based on gossipping:

• libp2p gossips create and maintain the network topology
• pkg/pubsub gossips synchronize machine schemas and clocks

Support

• state checking YES
• state mutations NO
• state waiting YES

Features

• gossip-based discovery
• gossip-based clock updates
• gossip-based checksums via machine time
• rate limiting
• no leaders, no elections

Screenshot

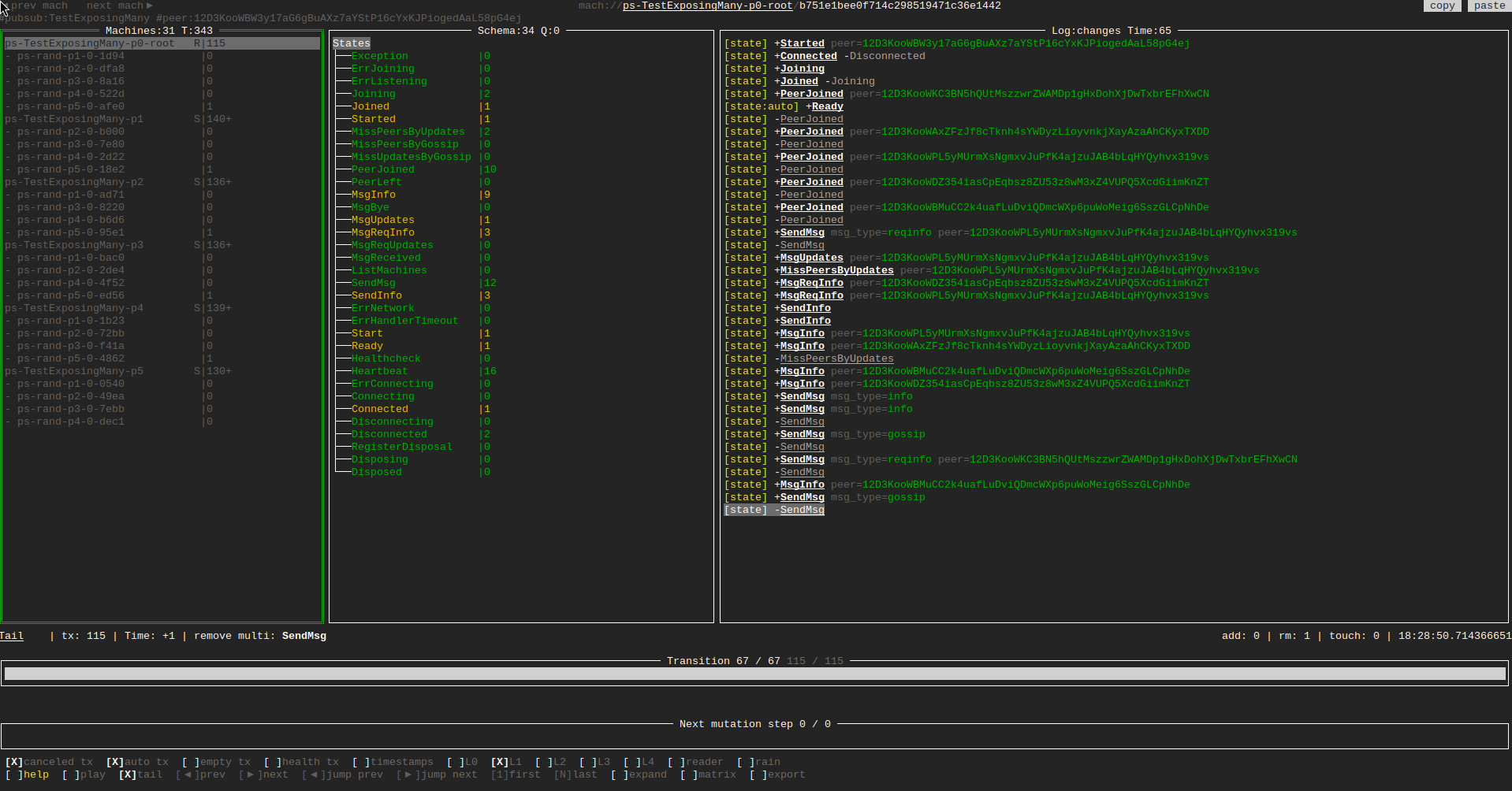

am-dbg view of a PubSub with 6 peers, with p1-p5 exposing a single state machine each.

Schema

State schema from /pkg/pubsub/states/.

TODO

• more protocol-level rate limiting
• confirmed handler timeouts #220
• faster discovery
• 1k peer load test
• mDNS & DHT & auth
• optimizations
• documentation
  • discovery protocol
  • sequence diagrams

Usage

Peer Init

import (
    ma "github.com/multiformats/go-multiaddr"
    ampubsub "github.com/pancsta/asyncmachine-go/pkg/pubsub"
    ssps "github.com/pancsta/asyncmachine-go/pkg/pubsub/states"
)

var ss = states.TopicStates

// ...

// new pubsub peer
ps, _ := ampubsub.NewTopic(ctx, t.Name(), name, machs, nil)
// address of an existing peer
a, _ := ma.NewMultiaddr("/ip4/127.0.0.1/udp/75343/quic-v1")
addrs := []ma.Multiaddr{a}

// connect
ps.ConnAddrs = addrs
ps.Start()
<-ps.Mach.When1(ss.Connected, ctx)
ps.Mach.Add1(ss.Joining, nil)

Remote Workers

import (
    ma "github.com/multiformats/go-multiaddr"
    ampubsub "github.com/pancsta/asyncmachine-go/pkg/pubsub"
)

var ss = states.TopicStates

// ...

// var remotePeerId string
// var ps *ampusub.Topic

// list machines exported by [remotePeerId]
ch := make(chan []*rpc.Worker, 1)
args := &A{
    WorkersCh: ch,
    ListFilters: &ListFilters{
        PeerId: remotePeerId,
    },
}
_ = ps.Mach.Add1(ss.ListMachines, Pass(args))
workers := <-ch
close(ch)s

// find a worker tagged "foo", add state "Bar", and wait for state "Baz"
for _, mach := range workers {
    if amhelp.TagValue(mach.Tags(), "foo") == "" {
        continue
    }
    mach.Add1("Bar", nil)
    println("Bar set on " + mach.Id())

    <-mach.When1("Baz", nil)
    println("Baz active on " + mach.Id())
    break
}

Status

Alpha, work in progress, not semantically versioned.

Credits

• libp2p
